MPY Concealed Modular Vertical Stack Fan Coil Series

The Concealed Modular (MPY) hydronic fan coil unit, IEC’s premier Vertical Stack Modular unit, is designed for concealed applications in corners or along room walls. Once installed, only the thermostat control, supply grille, and decorative return air panel of the MPY are visible in the room.

Features

  • 300-1200 CFM
  • Provided with a galvanized finish on the cabinet and a powder-coat paint finish on the return air panel
  • Return air panel provides easy access to all internal components
  • Wide variety of coil configurations to match the heating and cooling loads of the space
  • Upgrade to an energy efficient EC Motor with quiet operation

Benefits

  • Application fit — MPY fan coil units are specifically designed for quiet operation
  • Ease of installation — MPY fan coil units assembled at the factory in coordination with the jobsite construction schedule
  • Ease of service — filters are easily accessible by removing return air panel
  • Quality and safety — every unit is tested and inspected at the factory for trouble-free start-up

Modular Hi-Rise: Electric Heat Construction

TIF for Print, JPG for Web, PNG for Presentations
TIFs and PNGs have transparent backgrounds, JPGs have white backgrounds

MPY Concealed Modular Vertical Stack Fan Coil

MPY Concealed Modular Vertical Stack Fan Coil - Return Air Block Off Panel

MXY Exposed Modular Vertical Stack Fan Coil Series

The Exposed Modular (MXY) Vertical Stack fan coil unit is designed for applications where concealed installation is not possible or practical. The slim, attractively styled cabinet of the MXY blends with all types of décor.

Features

  • 300-1200 CFM
  • Double-deflection supply grille
  • Integral return air panel
  • Unit-mounted thermostat control
  • Provided with powder-coat paint finish
  • Upgrade to an energy efficient EC Motor with quiet operation

Benefits

  • Application fit — units are specifically designed for quiet operation
  • Ease of installation — units assembled at the factory in coordination with the jobsite construction schedule
  • Ease of service — filters are easily accessible by removing return air panel
  • Quality and safety — every unit is tested and inspected at the factory for trouble free start-up

Modular Hi-Rise: Electric Heat Construction

TIF for Print, JPG for Web, PNG for Presentations
TIFs and PNGs have transparent backgrounds, JPGs have white backgrounds

MXY Exposed Modular Vertical Stack
Fan Coil

MXY Exposed Modular Vertical Stack
Fan Coil - Return Air Panel Removed

MUY Universal Modular Vertical Stack Fan Coil Series

The Concealed Universal Modular (MUY) Vertical Stack fan coil unit is designed for concealed applications in corners or along room walls. The unique design of the MUY units utilize laser cut knock-outs so that installers can easily convert each unit to the desired application, allowing only the thermostat control, supply grille, and decorative return air panel of the unit to be visible.

Features

  • 300-1200 CFM
  • Provided with a galvanized finish on the cabinet and a powder-coat paint finish on the return air panel
  • Designed for the new construction and retrofit-replacement markets
  • Riser and condensate drain knock-outs have been strategically placed on three sides of each unit for field configuration
  • Wide variety of coil configurations to match the heating and cooling loads of the space
  • Upgrade to an energy efficient EC Motor with quiet operation

Benefits

  • Application fit — fan coil units are specifically designed for quiet operation
  • Ease of installation — fan coil units assembled at factory in coordination with the jobsite construction schedule
  • Ease of service — filters are easily accessible by removing the return air panel
  • Every fan coil unit tested and inspected at the factory for trouble free start-up

TIF for Print, JPG for Web, PNG for Presentations
TIFs and PNGs have transparent backgrounds, JPGs have white backgrounds

MUY Universal Modular Vertical Stack Fan Coil

MGY Mega Modular Vertical Stack Fan Coil Series

The Concealed Mega Modular (MGY) vertical stack fan coil unit is IEC’s premier unit, designed to deliver nominal airflow at 0.5” w.g. ESP in a ducted application. Though usually installed in a small mechanical closet, the MGY features an optional decorative return air panel to allow for a classic vertical style type installation.

Features

  • 1400-2000 CFM
  • Designed to be installed in a closet or furred-in enclosure
  • Ducted to provide indoor air comfort
  • Wide variety of coil configurations to match the heating and cooling loads of the space
  • Provided with galvanized finish on the cabinet
  • Upgrade to an energy efficient EC Motor with quiet operation

Benefits

  • Application fit — fan coil units are specifically designed for quiet operation
  • Ease of installation — fan units assembled at the factory in coordination with the jobsite construction to minimize filed installation labor
  • Ease of service — easily accessible filters for quick maintenance
  • Every fan coil unit is tested and inspected at the factory for trouble free start-up

TIF for Print, JPG for Web, PNG for Presentations
TIFs and PNGs have transparent backgrounds, JPGs have white backgrounds

MGY Mega MOD Vertical Stack Fan Coil

MGY Mega MOD Vertical Stack Fan Coil with Extended Plenum - Rear View

MGY Mega MOD Vertical Stack Fan Coil with Extended Plenum - Return Air Block Off Panel

MAY/MBY Ditto Concealed Modular Vertical Stack Fan Coil Series

The Ditto Concealed Modular (MAY/MBY) fan coil unit is designed for installation where two units share riser piping in the separation wall between two rooms but are equipped with individual valves, supply and return grilles and controls. The Ditto Concealed modular vertical stack unit is shipped factory assembled for additional installed cost savings.

Features

  • 300-1200 CFM
  • Double-deflection supply grille
  • Integral return air panel
  • Unit-mounted thermostat control
  • Provided with powder-coat paint finish on the return air panel
  • Shipped factory assembled with risers installed
  • Upgrade to an energy efficient EC Motor with quiet operation

Benefits

  • Application fit — fan coil units are specifically designed for quiet operation
  • Ease of installation — fan coil units assembled at the factory in coordination with the jobsite construction schedule
  • Ease of service — filters are easily accessible by removing return air panel
  • Quality and safety — every fan coil unit is tested and inspected at the factory for trouble free start-up

Modular Hi-Rise: Electric Heat Construction

TIF for Print, JPG for Web, PNG for Presentations
TIFs and PNGs have transparent backgrounds, JPGs have white backgrounds

MAY/MBY Concealed Modular Vertical Stack Fan Coil

MAY/MBY Concealed Modular Vertical Stack Fan Coil - Side View

MMY/MSY Primary/Secondary Modular Vertical Stack Fan Coil Series

The Primary/Secondary Modular (MMY/MSY) fan coil unit is ideal for applications where design restricts the installation of IEC’s Ditto Modular fan coil units (MAY/MBY). With this configuration, field brazing is required to complete the piping between two separate Modular Vertical Stack fan coil units. Standard MMY/MSY fan coil units are provided with a galvanized finish on the cabinet and a powder-coat paint finish on the return air panel.

Features

  • 300-1200 CFM
  • Double-deflection supply grille
  • Integral return air panel
  • Unit-mounted thermostat control
  • Provided with powder-coat paint finish on the return air panel
  • Shipped factory assembled with risers installed
  • Upgrade to an energy efficient EC Motor with quiet operation

Benefits

  • Application fit — fan coil units are specifically designed for quiet operation
  • Ease of installation — fan coil units assembled at the factory in coordination with the jobsite construction schedule
  • Ease of service — filters are easily accessible by removing return air panel
  • Quality and safety — every fan coil unit is tested and inspected at the factory for trouble free start-up

Modular Hi-Rise: Electric Heat Construction

MRY ReStoraMOD® Vertical Stack Fan Coil Series

Designed for fast, minimally invasive installation, the Modular Restoration fan coil unit (MRY), or ReStoraMOD® fan coil, allows for replacement of aging vertical stack fan coils without waiting for a complete whole room renovation budget. Its intelligent design allows for an existing vertical stack fan coil unit to be isolated and replaced without affecting fan coil units in neighboring spaces. The ReStoraMOD® vertical stack fan coil installs within an existing vertical stack frame which has had internal components removed. The innovative wall panel covers the rough opening and eliminates the need for finish work. In most cases, room downtime can be limited to one day or less.

Features

  • 300-1200 CFM
  • Single modular unit for renovation projects
  • Fabricated of heavy gauge steel
  • Replaces most existing vertical stack modular units including competitor’s units
  • Return air panel is powder coated for durability
  • Minimal disturbance of wall and room finishes eliminates downtime with the fastest modular vertical stack installation in the industry
  • Upgrade to an energy efficient EC Motor with quiet operation

Benefits

  • Application fit — specifically designed for retrofit applicatons, the ReStoraMOD® vertical stack fan coil is installed using existing materials with minimal disruption to the existing space
  • Ease of installation — concealed, slide-in replacement cabinets enabling easy and fast replacement for hospitality, multifamily and higher education modular vertical stack fan coil units
  • Ease of service — filters are easily accessible by removing return air panel
  • Quality and safety — every unit is tested and inspected at the factory for trouble free start-up

IEC ReStoraMOD®

TIF for Print, JPG for Web, PNG for Presentations
TIFs and PNGs have transparent backgrounds, JPGs have white backgrounds

MRY ReStoraMOD® Vertical Stack
Fan Coil

MRY ReStoraMOD® Vertical Stack Fan Coil - Return Air Panel Removed

MRY ReStoraMOD® Vertical Stack Fan Coil - Return Air Panel Options A

MRY ReStoraMOD® Vertical Stack Fan Coil - Return Air Panel Options B

MIY MINIReStoraMOD® Modular Vertical Stack Fan Coil Series

Designed for fast, minimally invasive installation where space is at a premium, the MINIReStoraMOD® Vertical Stack fan coil, or MIY, allows for replacement of smaller, aging vertical stack fan coils without waiting for a complete whole room renovation budget. Its intelligent design allows for a vertical stack fan coil unit to be isolated and replaced without affecting fan coil units in neighboring spaces. MINIReStoraMOD installs within an existing Vertical Stack fan coil unit which has had internal components removed. The innovative wall panel covers the rough opening and eliminates the need for finish work. In most cases, room downtime can be limited to one day or less.

Features

  • 380 CFM
  • Single modular unit for renovation projects
  • Fabricated of heavy gauge steel
  • Replaces some existing modular vertical stack units including competitor’s units
  • Return air panel is powder coated for durability
  • Minimal disturbance of wall and room finishes eliminates downtime with the fastest modular vertical stack installation in the industry
  • Upgrade to an energy efficient EC Motor with quiet operation

Benefits

  • Application fit — specifically designed for retrofit applicatons, the MINIReStoraMOD™ fan coil series is installed using existing materials with minimal disruption to the existing space
  • Ease of installation — concealed, slide-in replacement cabinets enabling easy and fast replacement for hospitality, multifamily and higher education modular vertical stack fan coil units
  • Ease of service —all major components are designed to be removed in less than 15 minutes
  • Quality and safety — every unit is tested and inspected at the factory for trouble free start-up


IEC ReStoraMOD®

TIF for Print, JPG for Web, PNG for Presentations
TIFs and PNGs have transparent backgrounds, JPGs have white backgrounds

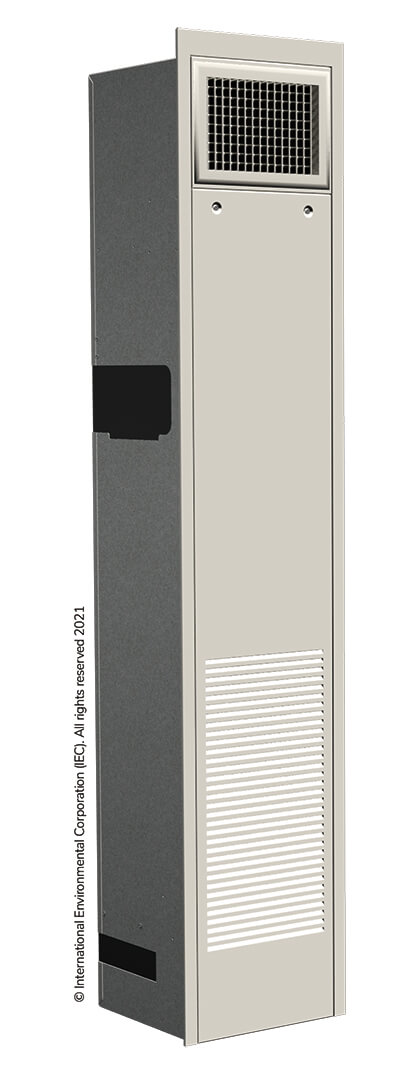

MIY Mini ReStoraMOD® Vertical Stack Fan Coil

MIY Mini ReStoraMOD® Vertical Stack Fan Coil - Return and Supply Air Grilles

MIY Mini ReStoraMOD® Vertical Stack Fan Coil - Coil Service

MIY Mini ReStoraMOD® Vertical Stack Fan Coil -Controls Access

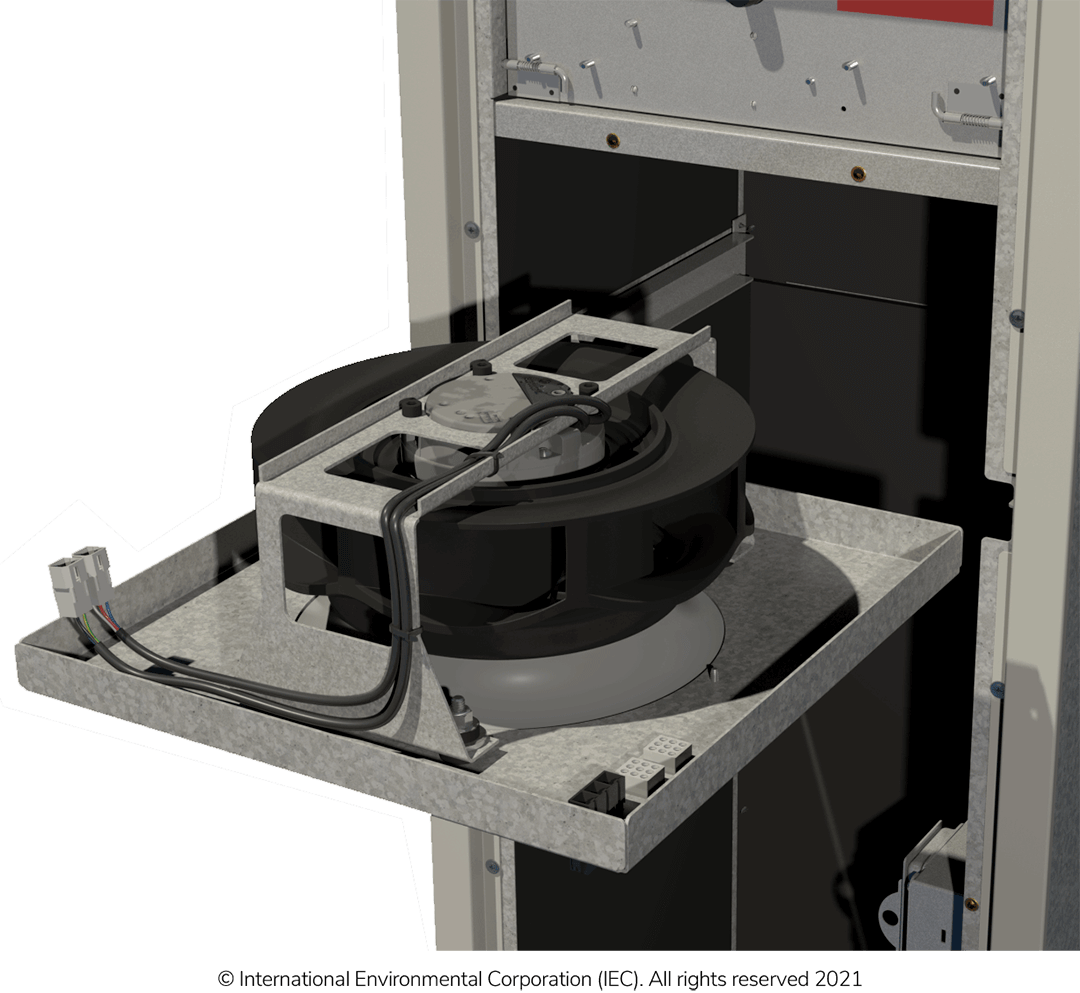

MIY Mini ReStoraMOD® Vertical Stack Fan Coil - Slide-Out Blower Deck

MIY Mini ReStoraMOD® Vertical Stack Fan Coil - Dorm Room Application

MIY Mini ReStoraMOD® Vertical Stack Fan Coil - Hospitality Application

Vertical Stack

Units designed to be stacked in a vertical column from floor to floor in a building
